3D Print – Caboose

Even though it is the last car on a train, it is the 3rd car in my train series, the Caboose.  After looking several train cars, I redesign the wheel attachment.  I named the train the “Midnight Express” because the entire train will be print in black.

I place items inside the car.  Table chairs, stove, sink, bench, barrels, crates, and platforms to look out the top windows to view the entire train.

DSCN7343

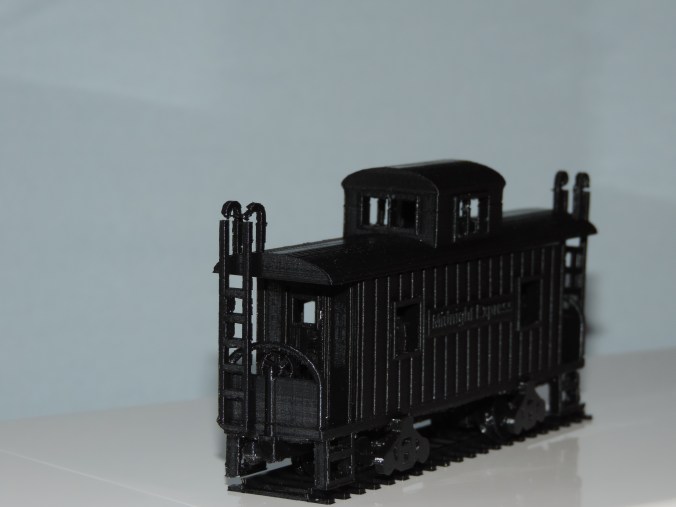

DSCN7349

The ladders are not fitting together quite right, but these are delicate.

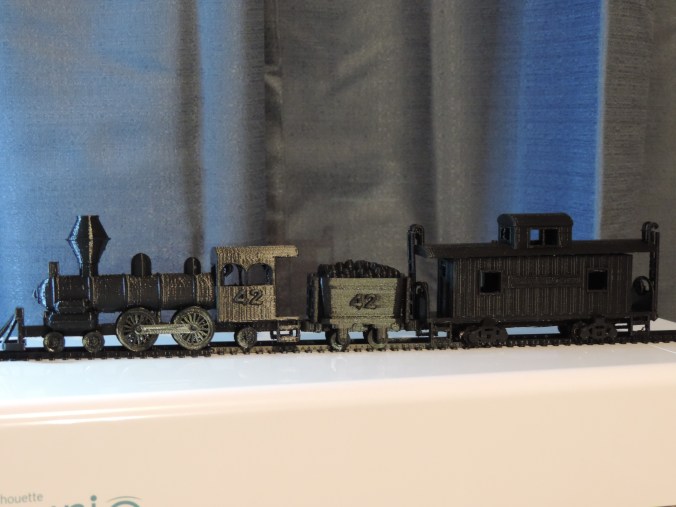

DSCN7356

The next car will be the passenger car.  I believe the train will need a box car and a cattle car.  Do I need a tank car?  Were they in use when trains ran off of coal.  May be a log car and a sleeper car.  There many of choices.

Object Size (W, D, H): 27, 136.43, 62.51 mm

Caboose in Tinkercad

Tinkercad – the free, online 3D CAD app

3d Print – Coal Car

This is the 2nd train car I designed in my effort to print a train.  The first car was the engine. Link: Train Engine

The Coal Car was fun to design.  Instead of spending hours on Tinkercad finding the right shape for the coal container (I didn’t want a box),  I duplicated the same shape and just slightly increase the size until I had the height I wanted.

DSCN7329DSCN7334

The joint to connect the Engine with the Coal Car actually worked.  It was tested previously, but to see it function was amazing.

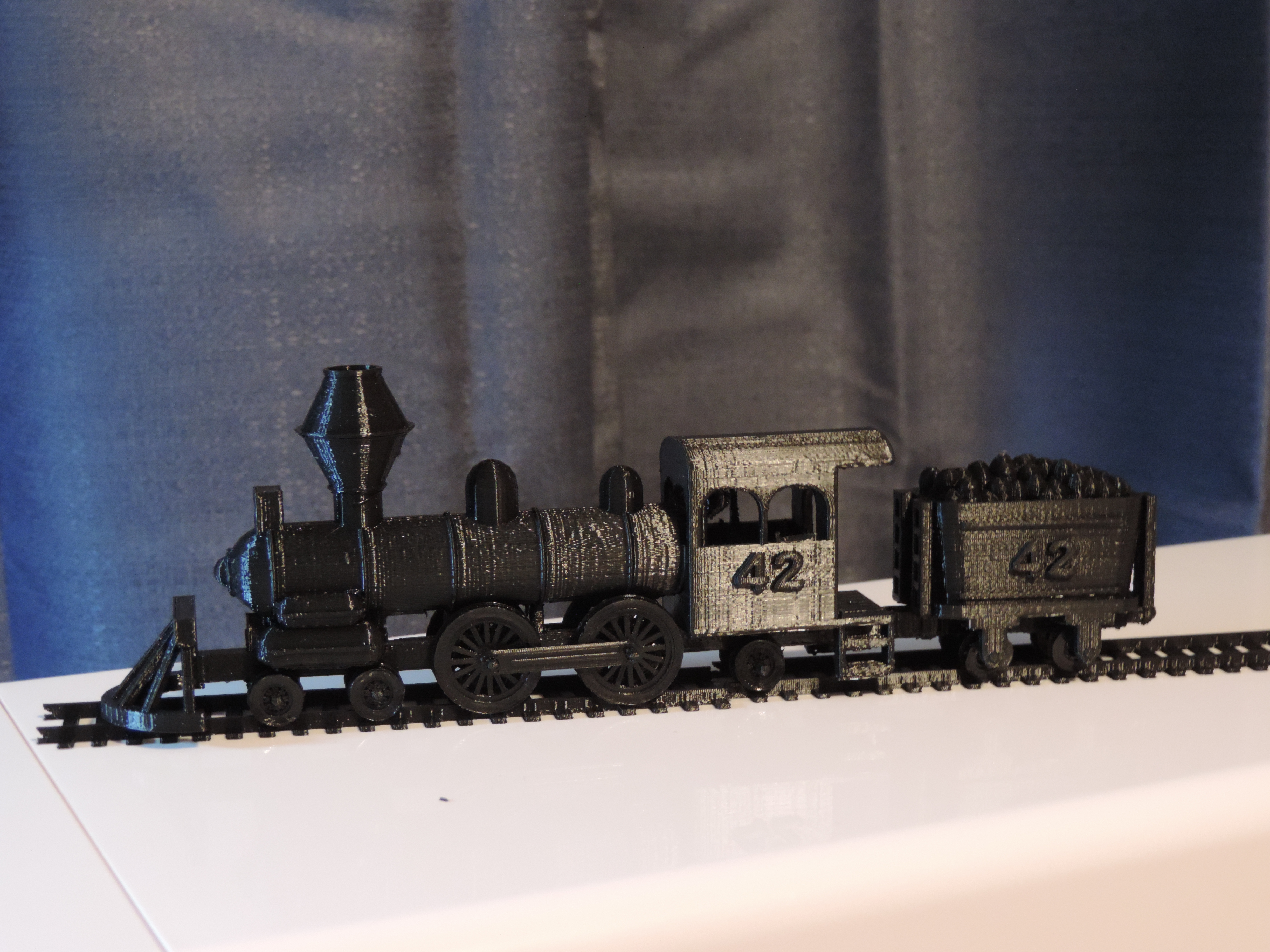

DSCN7336

Object Size (W, D, H): 25, 55.97, 42 mm



Tinkercad – the free, online 3D CAD app

Coal Car

3D Print – Two Story House

My 3D printed house. It was fun to design and a challenge to print. Instead of printing it in six sections, the next time I believe I will be printing it in four sections and if I want it in multiple colors, I will paint it.. The six sections were; foundation, 1st floor, balcony, 2nd floor, roof, and roof siding.

The roof siding fit into it designed location without much effort.

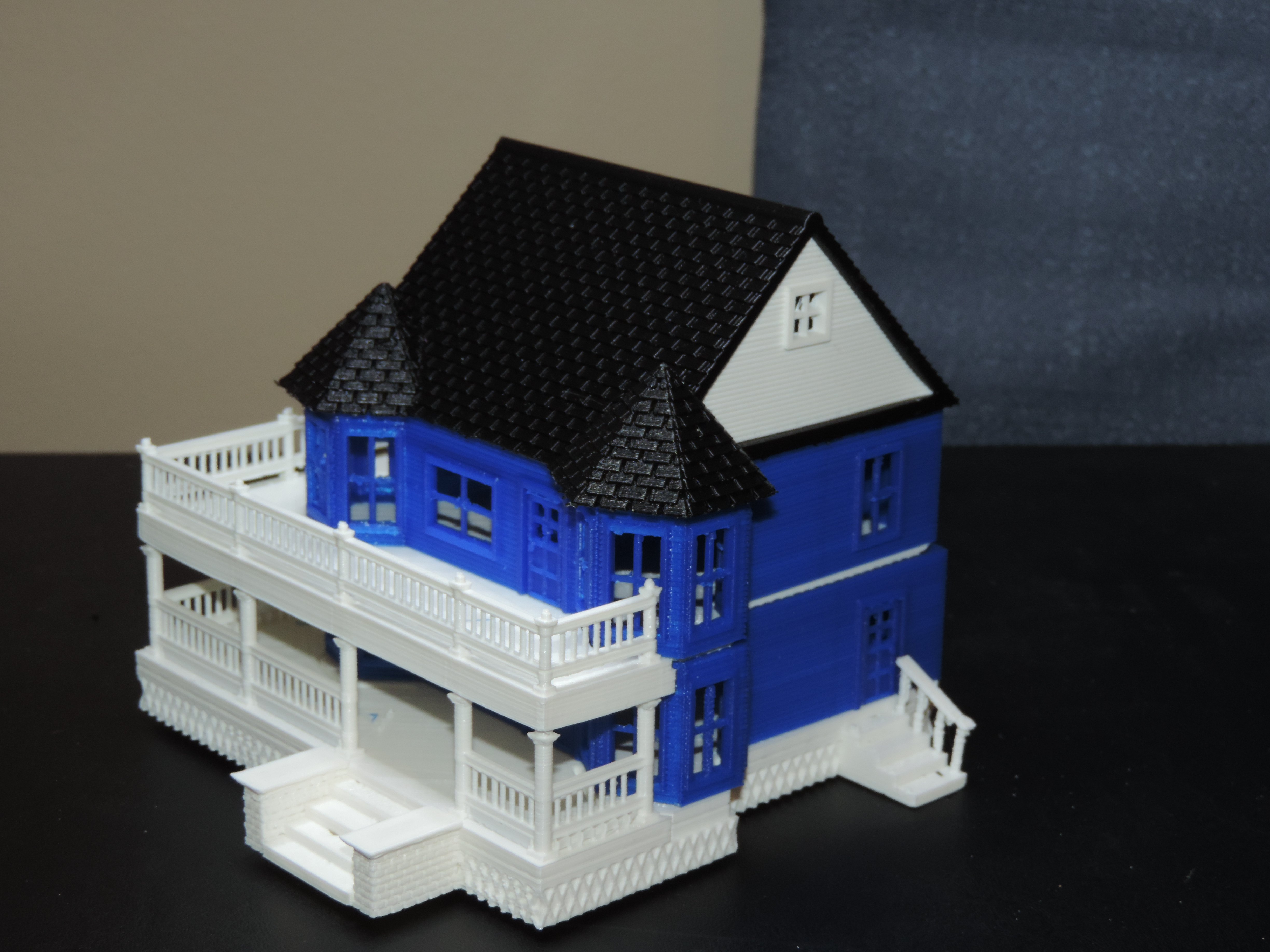

DSCN7320

The next house I will print on normal print vs. fast print.  Even if the sections take 11 hours each or more to print.  With the details in the house, I believe it is needed.

DSCN7319

I do not know why the corner next to the steps appears to be melted.  Maybe some oils from my fingers were on the build plate that prevented proper adhesion.

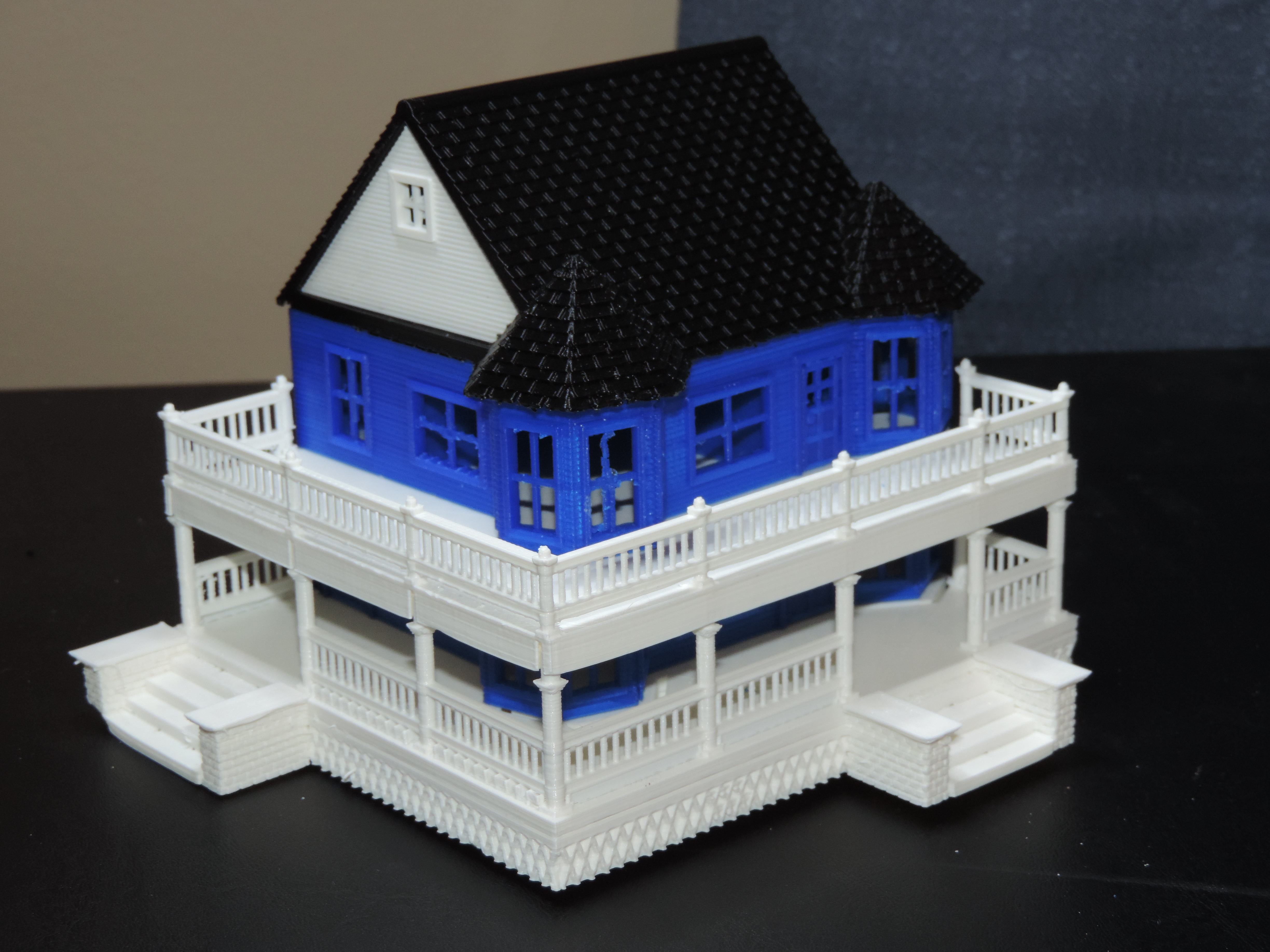

DSCN7317

The roof came out great. And, the railing printed nicely.  Whoops, it looks like I didn’t remove some of railing structure before taking the pictures.

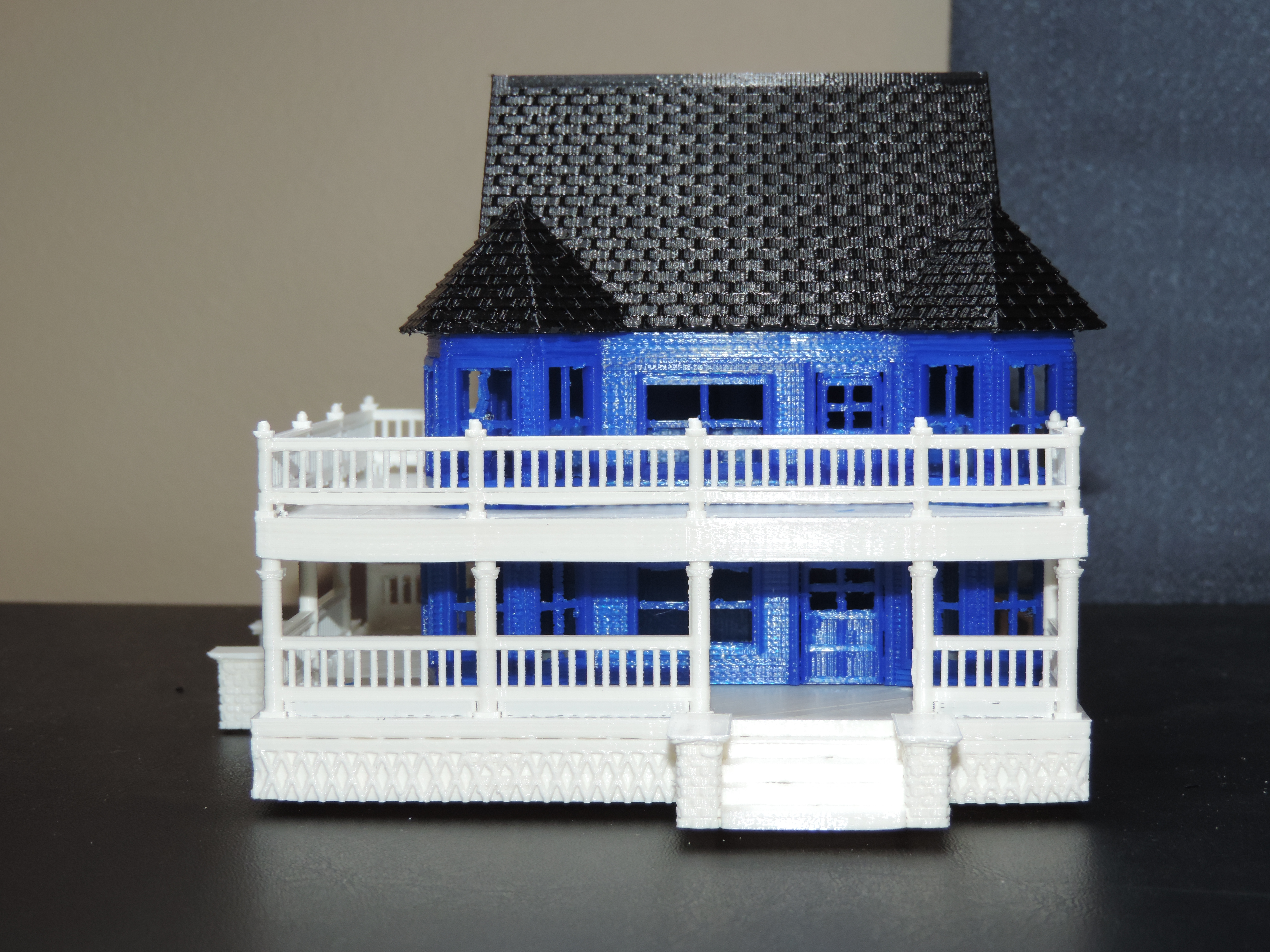

DSCN7322

The house was designed using Tinkercad.com; link Two Story House.

Object Size (W, D, H): 161.19, 133.06, 112.14 mm  (approximately)



Tinkercad – the free, online 3D CAD app

3d Print – Train Engine

One of my projects in the 3D Printing world is to design and print a train; Train Engine, Coal Car, Passenger Car, Cargo Car, etc.    I am not particularly into trains, but I thought it would be a fun project.  I’ve based the size of the train after Gn15 Model Train scale.  It specifies a train track gauge of 16.5 mm.

Only two of the cars have been completely designed and just finished printing the Train Engine, after several false starts.  The train is not a copy of any one train.   I used components I liked from many trains and incorporated them into the design.

A colored version of the Train Engine can be viewed on Tinkercad link: Train Engine.  Minor modifications where made for a successful print of the train.  The train was printed using supports (everywhere settings).  The carefully removal of the supports took time.

DSCN7283

The wheels of the train were printed separately because I wanted them to be able to spin.

DSCN7287DSCN7293DSCN7290DSCN7286

I even put chairs and gauges in the car to give the train character.  The grid on the platform was not part of the designed.  It was remnants of the support structure.  Instead of smoothing it out, I thought is provided a nice effect.

Train Engine:

Print Time: 3 hours 53 minutes
Filament: PLA – 4.11 meters 33 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 33.468, 151.55, 60.503 mm

Wheels:

Print Time: 55 minutes
Filament: PLA – .45 meters 4 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Once I completed the entire train, I will make the .STL files available on youmagine.com.

Tinkercad.com deserves created for provide me the resources to create!

Tinkercad – the free, online 3D CAD app

3D Print – Birthday

There are plenty of March birthdays in my family.  I needed cards.  Someone suggested buying gift cards for my dad.  So, I needed some gift card boxes.  Out comes the Corel Draw, the Silhouette, and the Ultimaker 2 to handle two of the birthdays.

Dad’s Birthday!

I used Corel Draw to create the background, then I printed it on metallic photo paper.  I designed the rest of the card using Silhouette Studio.

DSCN7169DSCN7175

I designed the gift card box in Tinkercad getting the dimension from a credit card.  The box was printed on the Ultimaker 2 using semi-transparent filament.

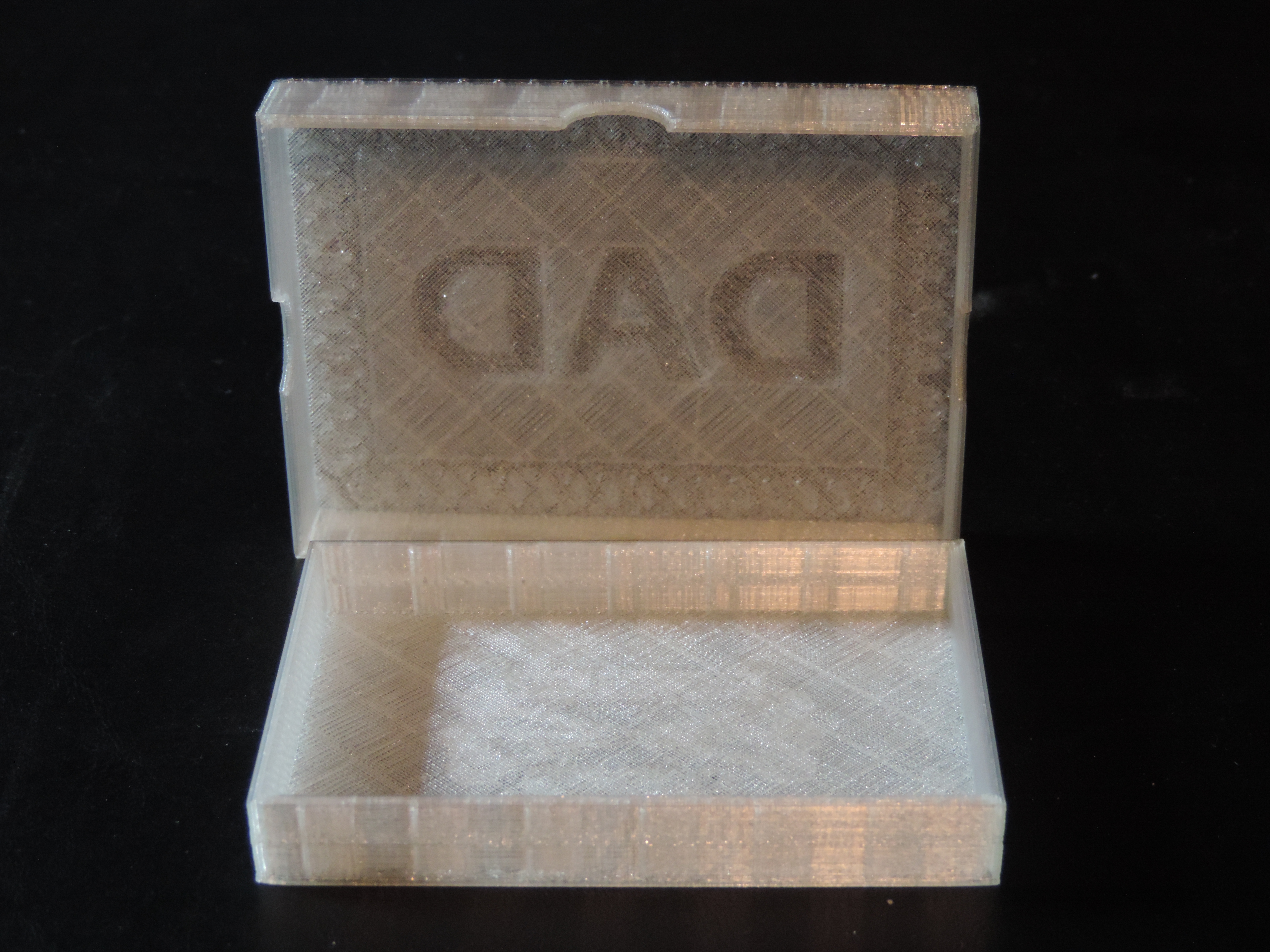

DSCN7192DSCN7195

Print Time: 3 hours 45 minutes
Filament: PLA – 5.22 meters 41 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 100.001, 164.001, 12.701 mm  (Both pieces printed together)

Amanda’s Birthday!

I used a template for Amanda’s card and cut it on the Silhouette.  However, I did design the envelope since no envelope was a good size..  Alas, I didn’t get a picture.

DSCN7166

I tweak the gift card box after the other one was printed to make the top smaller and fit better.  It was printed using pink filament.

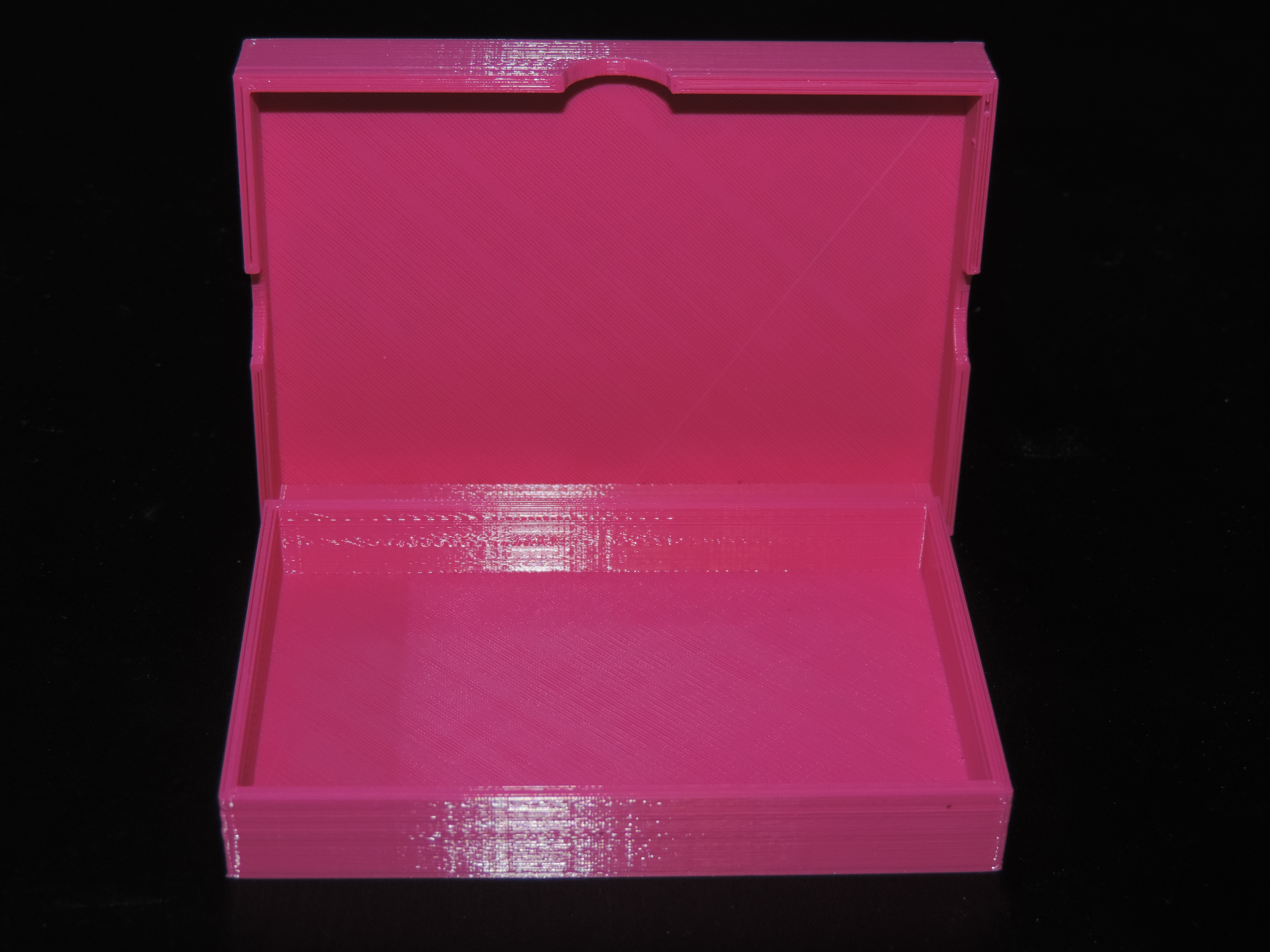

DSCN7183DSCN7187

Print Time: 3 hours 45 minutes
Filament: PLA – 5.25 meters 42 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 100.001, 163.501, 12.701 mm  (Both pieces printed together)

The boxes was printed with the top and bottom laying flat on the printer bed to make the boxes smoother.

3D Print – Church

I love old buildings, especially churches.  They have a lot of character and details you do not find in modern buildings.  My first major 3D design project was not modeled after any one particular church building, but after numerous churches I have seen through out my lifespan.

DSCN7176

The building was created in 3 main sections:  The foundation, the walls, and the roof.  I wanted the ability to put furniture inside the building.  I also wanted the doors to open, but the 3D print was too small to support hinges that actually worked.

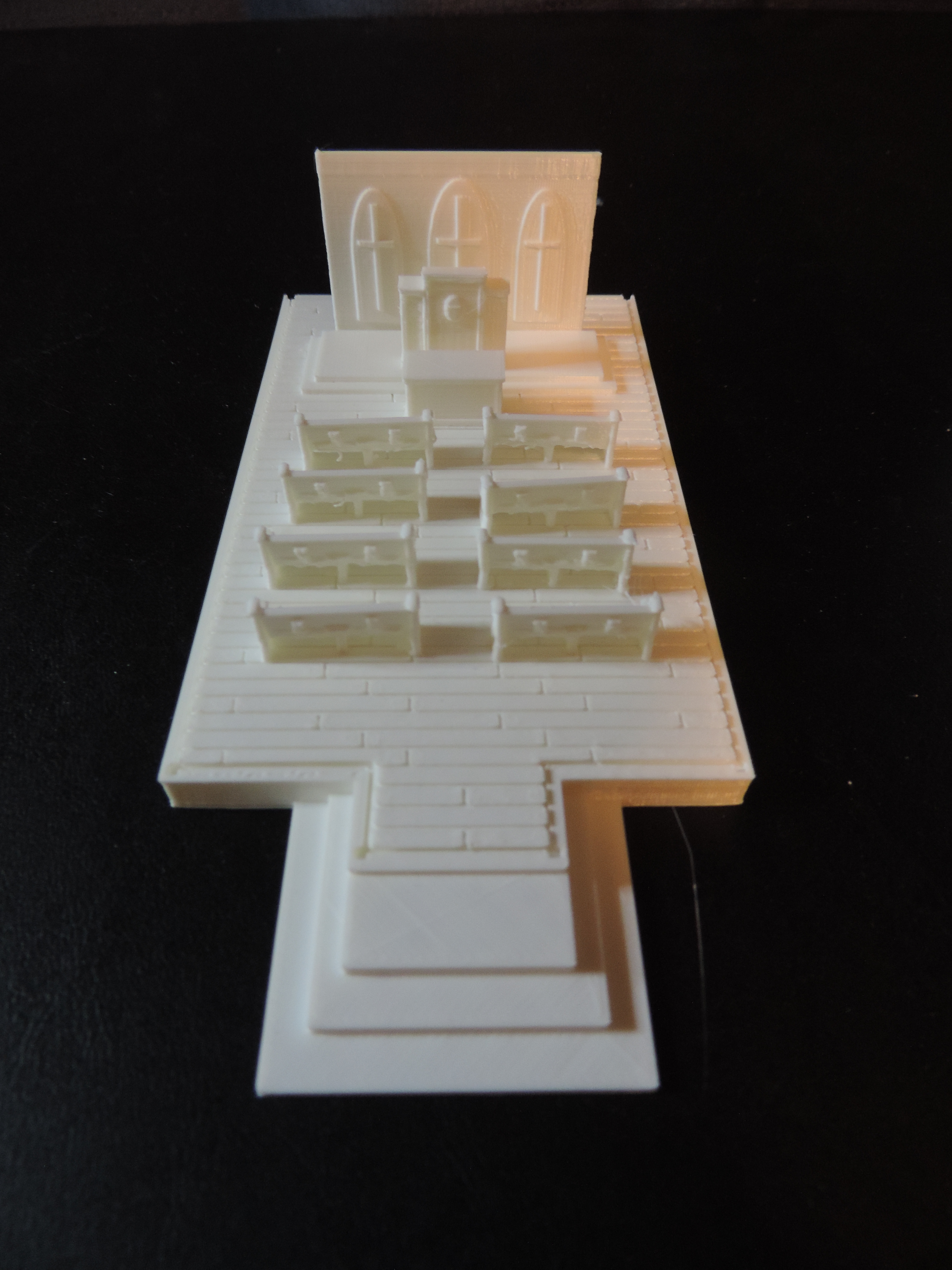

DSCN7181

The foundation include the steps, simulated wood flooring, and the cross display.  It contains groves in the foundation to hold the walls in place.

DSCN7179

The walls contains simulated wood siding, the windows and the doors.

DSCN7151

The roof contained the bell tower with simulated wood shingles.  The cross was printed separately and placed in the hole bell tower.

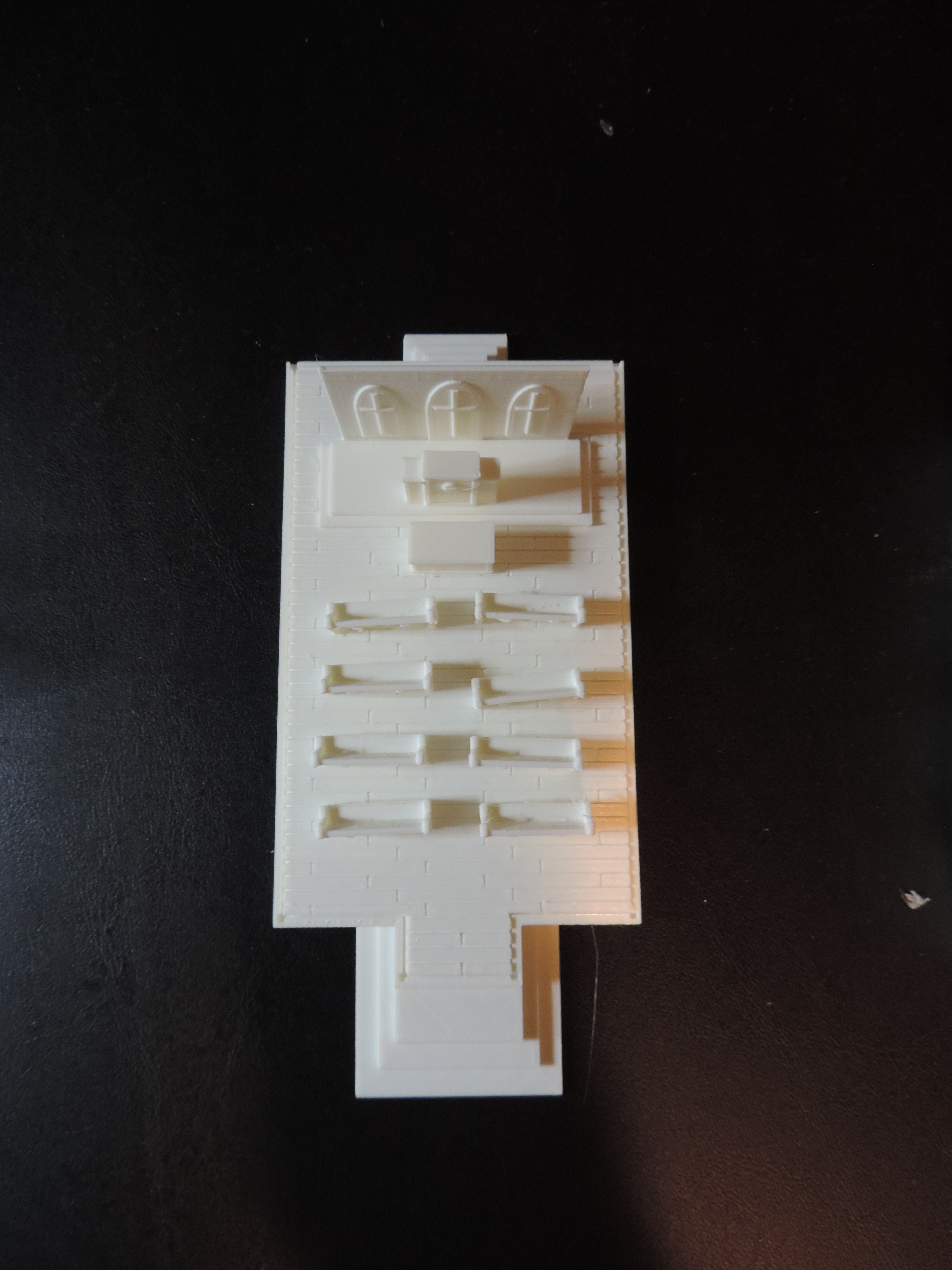

DSCN7182

The furniture was originally designed on a larger scale and shrunk down.  But, it had to be tweaked at the small scale since any support not being at least 1 mm did not print correctly.

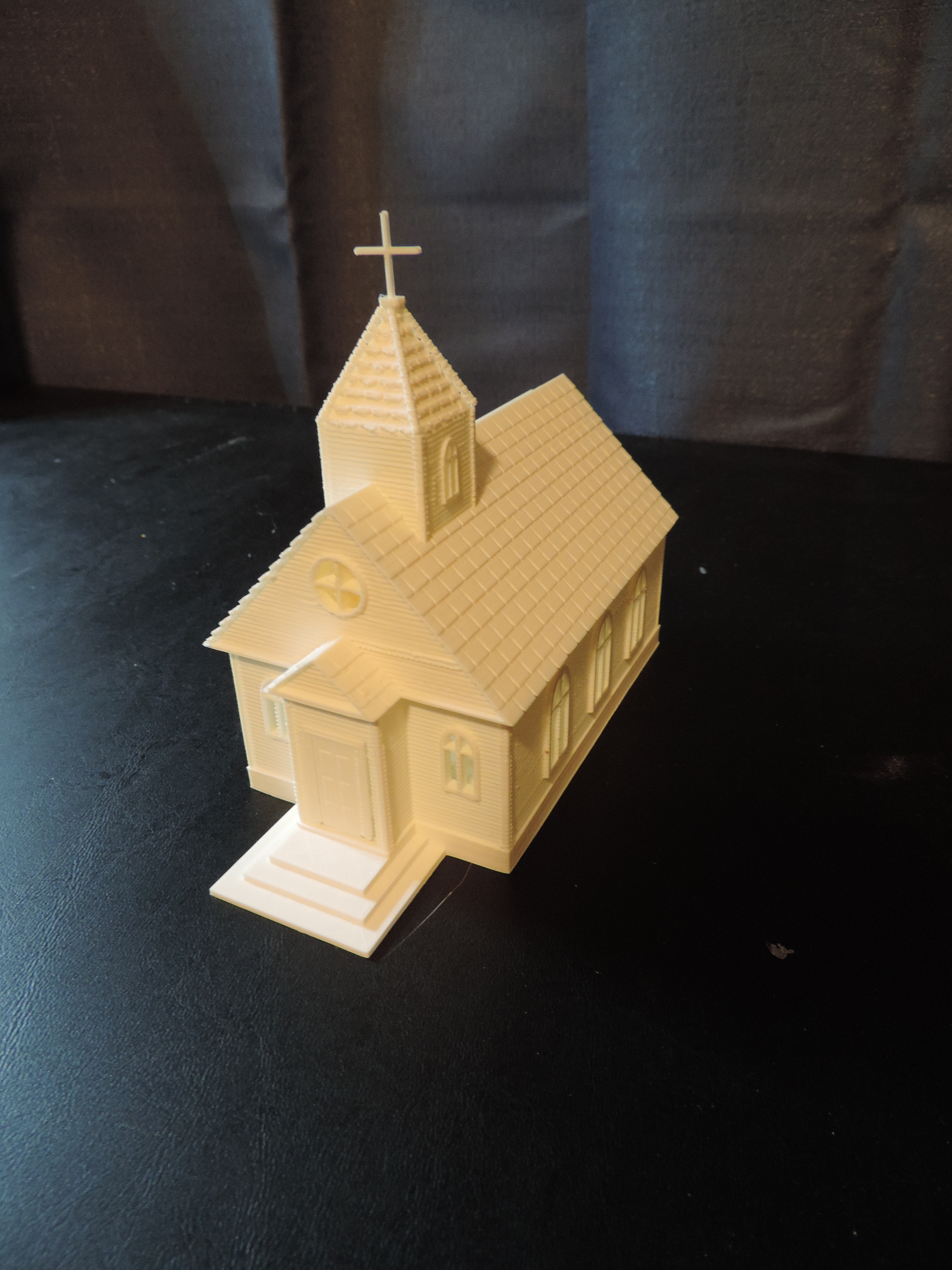

DSCN7177

Foundation:

Print Time: 6 hours 53 minutes
Filament: PLA – 3.76 meters 30 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 64.001, 140.8, 36.5 mm

Walls:

Print Time: 3 hours 18 minutes
Filament: PLA – 1.69 meters 13 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 64.474, 113.752, 32.252 mm

Roof:

Print Time: 10 hours 28 minutes
Filament: PLA – 7.12 meters 56 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 89.501, 117.201, 65.217 mm

The estimated print time for the entire building as one object is 21 hours 19 minutes.

Pew:

Print Time: 8 minutes
Filament: PLA – 0.04 meters 0 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 19.252, 5.453, 8.993 mm

Pew:

Print Time: 16 minutes
Filament: PLA – 0.11 meters 1 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 16.801, 5.745, 16.213 mm

Podium:

Print Time: 16 minutes
Filament: PLA – 0.11 meters 1 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 16.801, 5.745, 16.213 mm

Communion Table:

Print Time: 10 minutes
Filament: PLA – 0.09 meters 1 grams
Layer height: 0.1 mm
Shell Thickness: 0.8

Object Size (W, D, H): 15.001, 7.858, 8.5 mm
